Correct analysis results call for contamination-free sampling and sample storage. Impurities can affect the subsequent analysis and lead to faulty results that can then no longer be corrected. Today’s trace analysis reacts very sensitively to errors in sampling and sample storage.

behrotest® sample bottles help guarantee correct analysis results. Thanks to a very high quality of workmanship and the experience of behr Labor Technik, behrotest® sample bottles are instrumental in guaranteeing quality in the field of professional sample storage.

behrotest® screw cap red

special behrotest® PTFE-coated inlay

top-quality behrotest® bottle for your samples

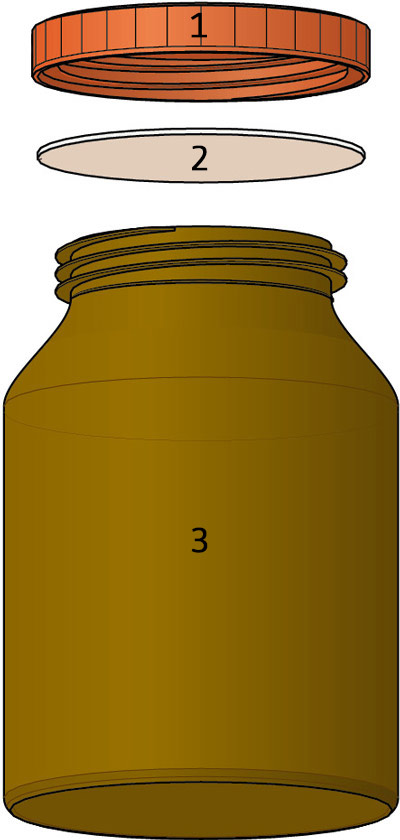

Structure of a behrotest sample bottle




Skizze Skizze

Structure of a behrotest sample bottle

1. behrotest® screw cap red

2. special behrotest® PTFE-coated inlay

3. top-quality behrotest® bottle for your samples




Fields of application

Fields of application: just like behr’s entire product portfolio, the behrotest® sample bottles can also be used in the most diverse of industries thanks to their high quality of workmanship and variety of different configuration options

behr_labor_anwedungsfelder_agrar

soil analysis

behr_labor_anwendungsfelder_futtermittel

wastewater and water analysis

behr_labor_anwedungsfelder_getraenke

chemicals industry

behr_labor_anwedungsfelder_lebensmittel

petrochemicals

blt_democontent_200x133

oil and grease analysis

behr_labor_anwendungsfelder_labore

research & development

Configuration options

All of the bottles are inert and extremely leak-proof thanks to a PTFE-inlay in the cap. Since the content of the bottle only comes into contact with glass and PTFE, your samples cannot become contaminated. Configure the behrotest® sample bottles online and let us send you a non-binding offer.

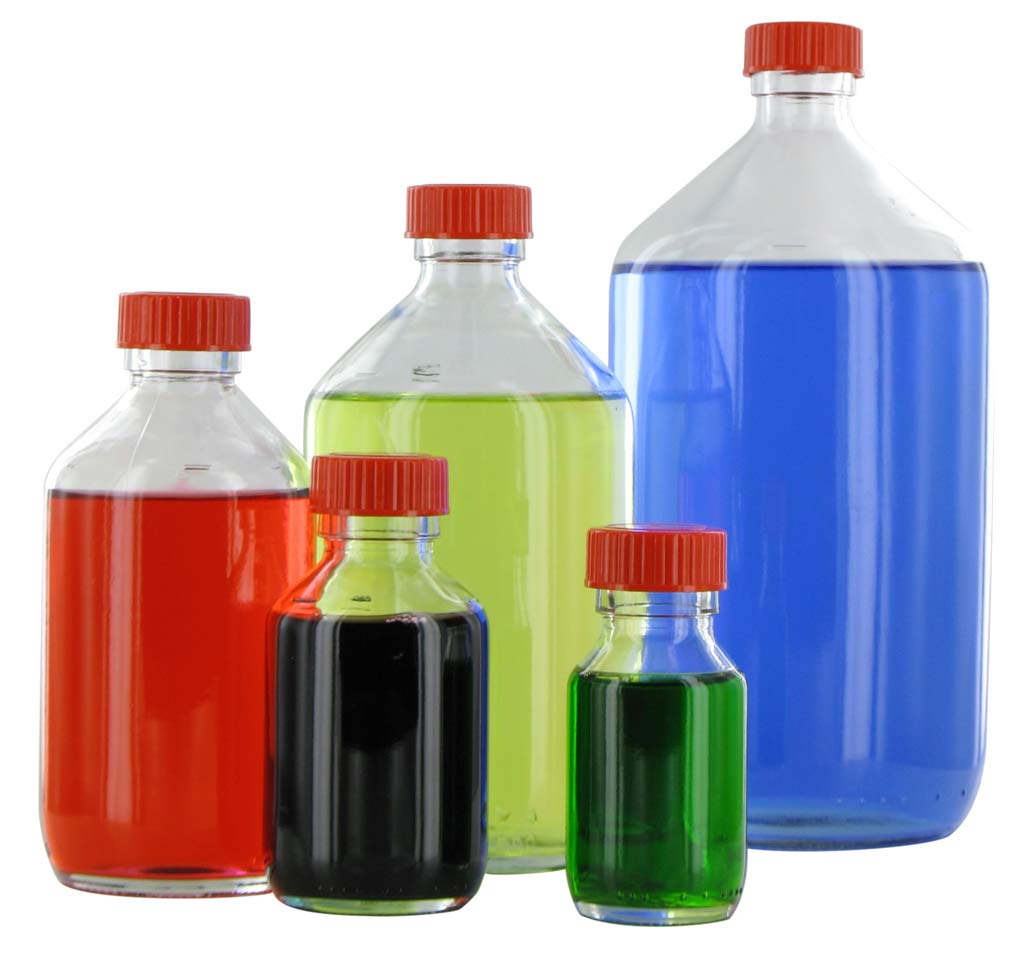

NK_Gruppe_GT

narrow mouth bottles

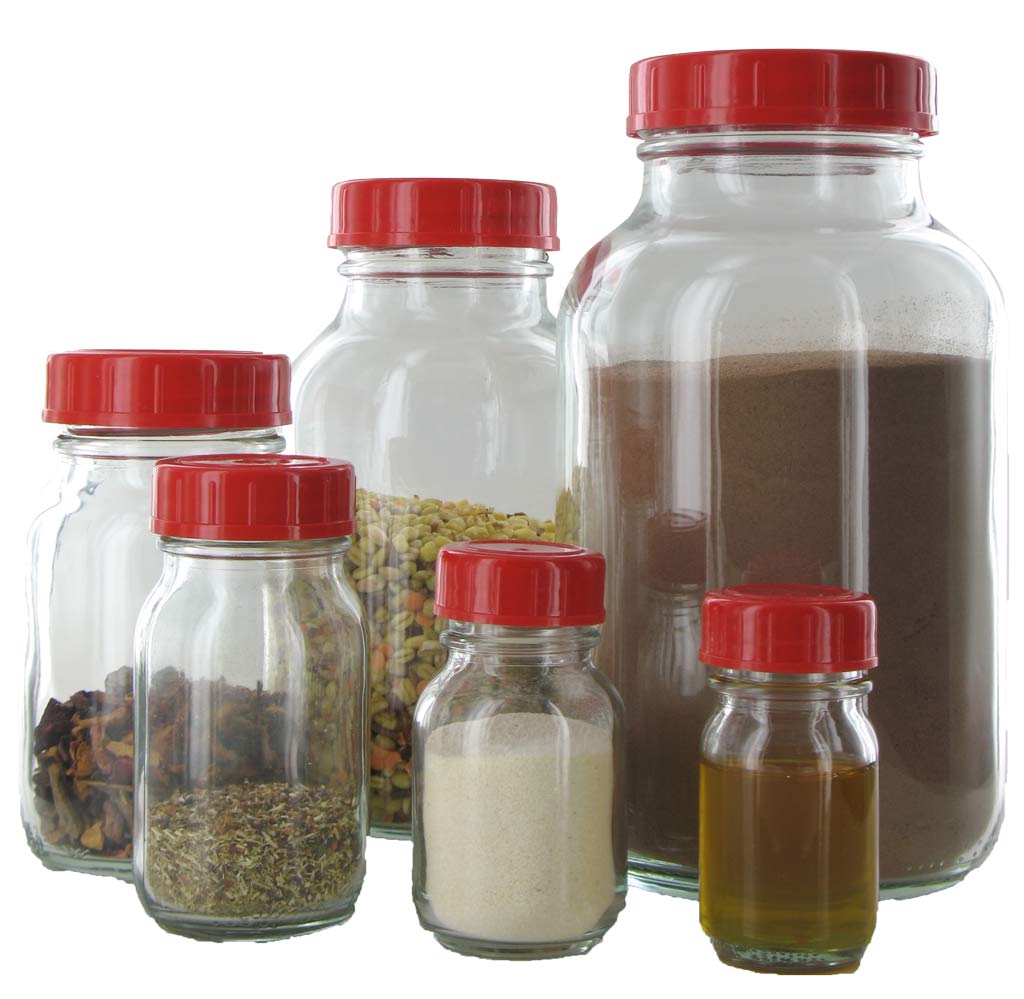

RK-Gruppe_freigestellt

wide mouth bottles

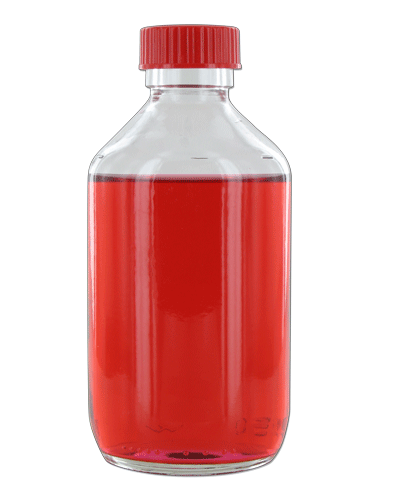

behrotest® narrow mouth bottles for liquid sample

Contact us at quotation@samplingbottles.com if you have any questions

behrotest® wide mouth bottles

Contact us at quotation@samplingbottles.com if you have any questions

clear glass

PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit.

Type Content Thread mm Art.- No.
NK 50 GT 50 ml 28 B00636017
NK 100 GT 100 ml 28 B00636018
NK 250 GT 250 ml 28 B00636019
NK 500 GT 500 ml 28 B00636020
NK 1000 GT 1000 ml 28 B00636021

Order now

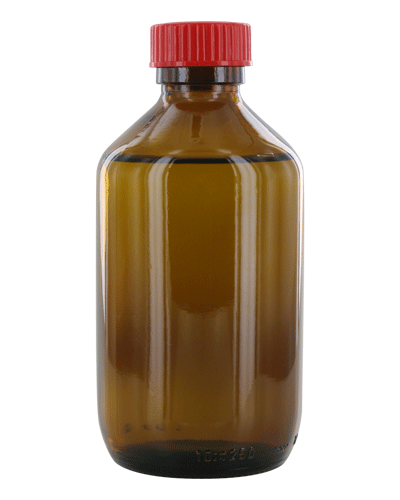

UV-protection

Ideal for samples that have to be protected against light. PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit.

Type Content thread mm Art. No.
NB 50 GT 50 ml 28 B00636012
NB 100 GT 100 ml 28 B00636013
NB 250 GT 250 ml 28 B00636014
NB 500 GT 500 ml 28 B00636015
NB 1000 GT 1000 ml 28 B00636016

Order now

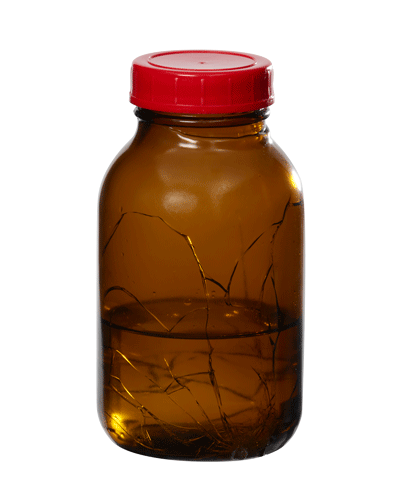

Breakage protection

Prevents the bottles from shattering if the glass breaks as well as splintering and leaking of the sample. Ideal for samples that have to be protected against light. PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit.

clear glass

Type Content Thread mm Art.- No.
NK100GT-B 100 ml 28 B00654023
NK250GT-B 250ml 28 B00654024
NK1000GT-B 1000ml 28 B00654026



brown glass

Ideal for samples that have to be protected against light. PTFE inlay in the cap is thus inert and particularly leak-proof

10 pieces per packaging unit.

Type Content Thread mm Art.- No.
NB100GT-B 100 ml 28 B00654018
NB250GT-B 250ml 28 B00654019
NB1000GT-B 1000ml 28 B00654021

*other sizes possible on request

Order now

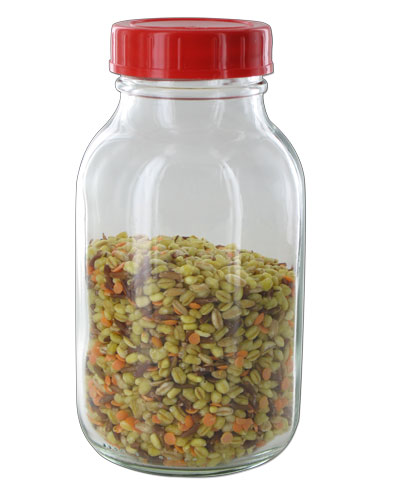

clear glass wide mouth bottles

PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit

Typ Inhalt Gewinde mm Art.- Nr.
RK 30 GT 30 ml 32 B00622067
RK 50 GT 50 ml 32 B00622068
RK 100GT 100 ml 40 B00622069
RK 250 GT 250 ml 55 B00622031
RK 500 GT 500 ml 55 B00622032
RK 1000 GT 1000 ml 68 B006220633

Order now

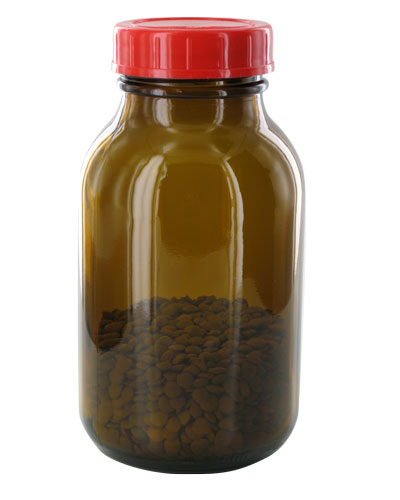

UV-protection wide mouth bottles

PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit.

Type Content Thread mm Art. No.
RB 30 GT 30 ml 32 B00622064
RB 50 GT 50 ml 32 B00622065
RB 100 GT 100 ml 40 B00622066
RB 250 GT 250 ml 55 B00218524
RB 500 GT 500 ml 55 B00218525
RB 1000 GT 1000 ml 68 B00218526

Order now

breakage protection

clear glass

Prevents the bottles from shattering if the glass breaks as well as splintering and leaking of the sample. Ideal for samples that have to be protected against light. PTFE inlay in the cap is thus inert and particularly leak-proof.

10 pieces per packaging unit.

Type Content Thread mm Art. No.
RK250GT-B 250 ml 55 B00670499
RK500GT-B 500 ml 55 B00670500
RK1000GT-B 1000 ml 68 B00670501

brown glass

Ideal for samples that have to be protected against light. PTFE inlay in the cap is thus inert and particularly leak-proof

10 pieces per packaging unit.

Type Content Thread mm Art. No.
RB250GT-B 250 ml 55 B00670495
RB500GT-B 500 ml 55 B00670496
RB1000GT-B 1000 ml 68 B00670497

*other sizes possible on request

Order now

Optional accessories

Optional accessories: safe transport ? No problem! It doesn’t matter if you have to transport your sample bottles in-house (e.g. different laboratories) or externally (e.g. various production sites). The stackable behrotest® transport boxes, behrotest® mobile frames or behrotest® safety nets are ideal for each of these application examples.

Perhaps you have a different application case for which you are looking for a solution? If so, please feel free to contact us. There is bound to be a solution for any problem!

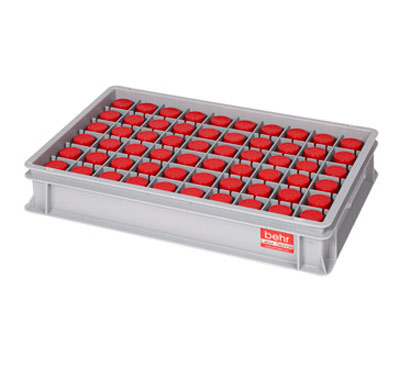

Storage and transport box

Transport your valuable samples in our safe box for up to 60 bottles.

Type article description thread mm Art. No.
PTB 1 for up to 60 sample bottles of the type NK 50 GT, NK 100 GT, NB 50 GT, NB 100 GT, RK 30 GT, RK 50 GT, RK 100 GT, RB 30 GT,RB 50 GT, RB 100 GT.  600 x 400 x 145 B00657121
PTB 2 for up to 60 sample bottles of the type NK 250 GT, NB 250 GT, RK 250 GT, RB 250 GT. 600 x 400 x 170 B00657122
PTB 3 for up to 60 sample bottles of the type NK 500 GT,  NK 1000 GT, NB 500 GT, RK 500 GT, RK 1000 GT, RB 500 GT, RB 1000 GT  600 x 400 x 280 B00657123

Order now

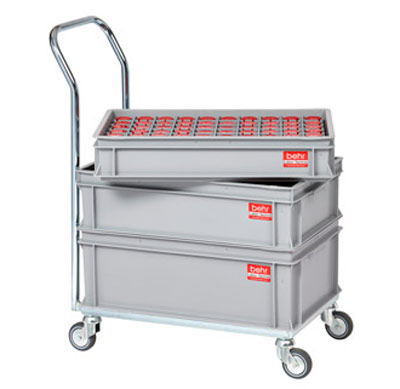

Transport trolley

practical, lightweight and sturdy, offers a firm stand for behrotest® storage and transport containers during transport.

Type article description Art. No.
TW1 for behrotest® storage and transport containers PTB1, PTB2 und PTB3  B00657136

Order now

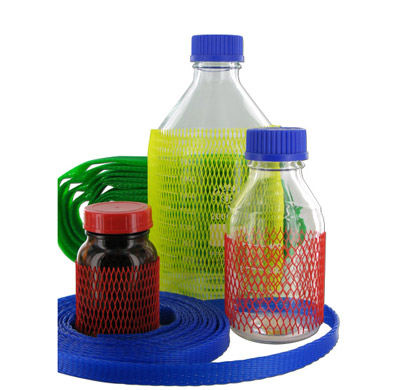

Safety nets

You can protect your glass containers very effectively with our behroplast safety nets of polyethylene. Simply cut to size with scissors.

roll 5 meter

Type for Ø mm color Art. No.
SN15 6 – 15 red B00193723
SN25  12  – 25 blue B00193724
SN40 20 – 40 yellow B00193725
SN60 30 – 60 green B00193726
SN100 50 – 100 red B00193727
SN200 90 – 200 yellow B00193728

Order now

Order data

This PDF contains all important information on behrotest® sample bottles such as order numbers, instructions for use and the various accessories available for storage and transport. Download PDF
